A - OVERLAY
|
Full-overlaydoors and drawer fronts
|
B - FACE FRAME
|
3/4” (19 mm) x 1-1/2” (36 mm) solid birch face frame
|

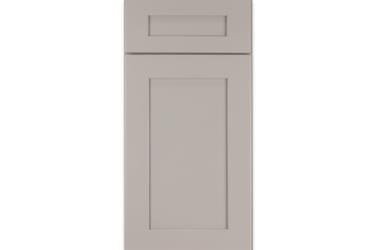

C - DOORS
|
Painted doors are 5-piece MDF cope-and-stick with a 3/4” (19 mm) thick, 2-3/4” wide door frame with 1/4" MDF center pane
|
D - HINGES
|
6-way adjustablesoft-closeconcealed hinges
|
E - DRAWER FRONTS
|
5-piecedrawer fronts with 3/4” (19mm) thick frame and 1/4" thick center panel
|
F - DRAWERS |
5/8” (18 mm) thick solid wood dovetail drawer boxes with 3/8” thick veneered plywood drawer bottom
|
G - DRAWER SLIDES
|
Premium full extension, 100 lbdynamicweight rated,adjustable undermount soft-close slides
|
H - SHELVES
|
3/4” (16 mm) thick veneered plywood adjustable shelves – half depth in base cabinets
|
I - END PANELS
|
1/2” (12 mm) thick plywood end panels with exterior finish to match
UV coated, natural birch interior
|
J - TOP/BOTTOM PANELS
|
1/2” (12 mm) thick plywood captured top and bottom
UV coated, natural birch interior
|
K - BACK PANELS
|
UV coated plywood back panel
|
L - CONSTRUCTION |
All plywood cabinet construction
Dovetail / Pocket screw assembly system
3/4” (19 mm) thick solid wood corner braces
4-1/2” (114 mm) high toe kick
|
